产品名称：真空双室低压碳氮共渗油淬炉

Name: Vacuum double chamber low pressure carburizing oil quenching furnace

用途：真空双室低压碳氮共渗油淬炉，具有渗碳，碳氮共渗、油淬和加压气冷多种功能。主要用来对模具钢、不锈钢、高速钢、高合金钢工模具、淬火、退火、回火以及对中、低碳合金钢进行渗碳、碳氮共渗淬火，多种真空热处理工艺。可以实现一次强渗碳、脉冲渗碳等渗碳方式及碳氮共渗等工艺

Application: The vacuum double-chamber low-pressure carbon-nitrogen co-infiltration oil quenching furnace has various functions of carburizing, carbonitriding, oil quenching and pressure air-cooling. Is mainly used for carrying out carburizing, carbonitriding quenching and various vacuum heat treatment processes of die steel, stainless steel, high-speed steel, high-alloy steel tools, quenching, annealing, tempering and centering and low-carbon alloy steel. Can realize one-time carburizing, pulse carburizing and other processes, such as carburizing, carbonitriding, etc.

真空双室低压渗碳油淬炉具有

Vacuum double chamber low pressure Carburizing oil quenching furnace has；

1.  智能化，自动化程度高，可实现工艺运行一键启动

Intelligent, high degree of automation, can achieve one-button start-up of process operation。

2.  符合（国家十二五环保）规划，明显节能40-60%，无危险

In accordance with (the 12th five-year Plan of the State), the energy saving is obviously 40% to 60%, no danger.

3.  可实现自由生产，随时开炉停炉

Free production can be realized and furnace can be opened and shut down at any time.

4.  渗碳介质消耗少，可忽略不计

Less carburizing medium consumes and can be ignored.

5.  可实现盲孔渗碳和高温渗碳

Blind hole Carburizing and high temperature Carburizing can be realized.。

6.  工件表面质量好，热处理变形小，渗层均匀，重复性好，无内氧化，无尖角过渗无炭黑等优点

The workpiece has the advantages of good surface quality, small heat treatment deformation, uniform layer, good repeatability, no internal oxidation, no sharp corner and no carbon black, and the so on.

  特点 characteristic：

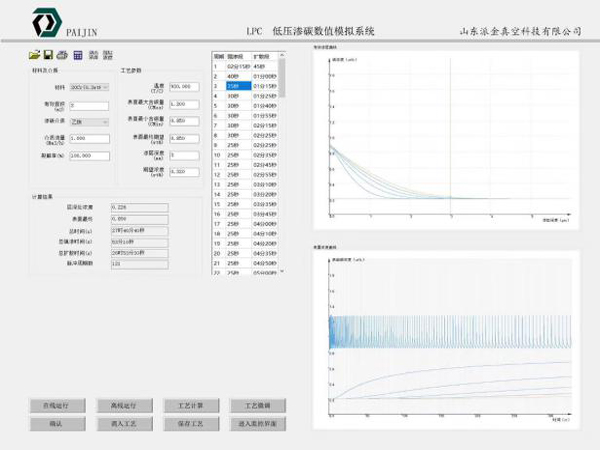

★  专用的真空低压渗碳模拟软件，智能高效

Special vacuum low-pressure carburizing simulation software, intelligent and efficient

　★　 加热元件沿加热室圆周360°均匀布置，温度均匀性高

The heating element is uniformly arranged along the circumference of the heating chamber by 360 degrees, and has high temperature uniformity.

　★   采用外绝缘结构，杜绝渗碳炭黑污染

The external insulation structure is adopted to eliminate the pollution of the carburized carbon black.　
★　淬火搅拌机构变频调速且带有导流装置，冷却均匀性好、工件变形小

★   具有恒温油淬火/等温淬火/对流加热/真空分压

Constant temperature oil quenching / Isothermal quenching / convective heating / vacuum partial pressure

　★　 油淬火机构且带有导流装置，冷却速度快、工件变形小

The oil quenching mechanism with diversion device has the advantages of fast cooling speed and small deformation of workpiece.

★   变频搅拌淬火/上下窜动淬火/加压淬火

Frequency conversion stirring quenching / up and down moving quenching / pressure quenching.

　★　 渗碳气体喷嘴沿加热室圆周及前后均匀布置，渗碳层厚度均匀

Carburizing gas nozzles are uniformly arranged around and before and after the heating chamber, and the thickness of carburized layer is uniform.

　★　 操作简洁 编程工艺灵活输入 机械动作稳定可靠

The operation is simple and the programming process is flexible, and the mechanical action is stable and reliable.

　★　 手动/半自动/自动 故障自动报警/显示

Manual / semi-automatic / automatic fault automatic alarm / display

配置选择/Configure select:

产品 规格/ Specifications：

注：特殊规格要求可根据客户要求定制

Note: Special specification requirements can be customized according to customer requirements

以下参数可根据工艺要求调整，不作为验收依据，具体以技术方案和协议为准

The following parameters may be adjusted according to the process requirements and shall not be used as the basis for acceptance, depending on the technical scheme and agreement
