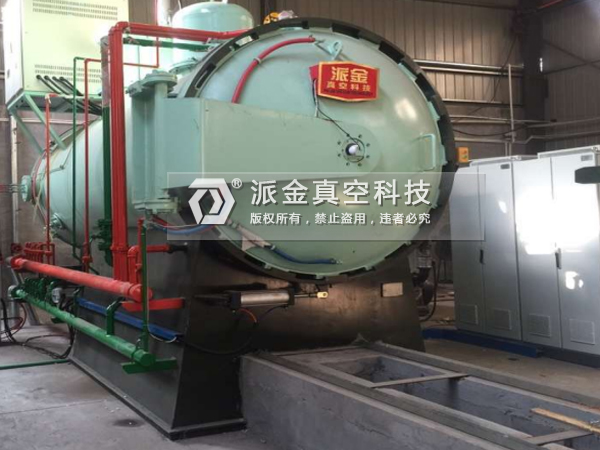

叁室卧式油气双淬真空炉

主要用于合金钢、合金结构钢、工模具钢、弹簧钢、轴承钢、不锈钢、精密合金钢等材料的光亮淬火、调质及磁性材料的烧结，光亮退火及真空钎焊

分享商品：

销售电话：15318905266

叁室卧式油气双淬真空炉

产品名称：叁室卧式油气双淬真空炉

Name: Three chamber horizontal oil and gas double quenching vacuum furnace

规格：见技术参数/ Specification: Refer to technical parameters

用途：主要用于合金钢、合金结构钢、工模具钢、弹簧钢、轴承钢、不锈钢、精密合金钢等材料的光亮淬火、调质及磁性材料的烧结，光亮退火及真空钎焊

Application: It is mainly used for bright quenching, quenching and tempering of alloy steel, alloy structure steel, die steel, spring steel, bearing steel, stainless steel, precision alloy steel, sintering, bright annealing and vacuum brazing of alloy steel, alloy structure steel, die steel, spring steel, bearing steel, stainless steel, precision alloy steel, etc.　

特点 /characteristic：

1. 加热元件沿加热室圆周360度均匀布置，温度均匀性达±5℃

The heating element is evenly arranged along the circle of the heating chamber at 360 degrees, and the temperature uniformity is up to ±5 ℃.

2. 加热室与油（气）淬火室分开，可选择性淬火

The heating chamber is separated from the oil (gas) quenching chamber and can be selectively quenched.。

3.油搅拌机构变频调速且带有导流装置，冷却均匀性好、工件变形小

The oil mixing mechanism has variable frequency speed regulation and flow diversion device, good cooling uniformity and small deformation of the workpiece.

4.具有恒温油淬火/等温淬火/对流加热/真空分压

Constant temperature oil quenching / Isothermal quenching / convective heating / vacuum partial pressure

5.气淬采用高效方形换热器，冷却速度提高80％

High efficiency square heat exchanger is used for gas quenching, and the cooling rate is increased by 80%。

6.采用双风机对流均匀冷却，使用变频，转速可调

The double fan convective uniform cooling is adopted, the frequency conversion is used, and the rotating speed can be adjusted.

7. 机械动作稳定，承载量重，料车自动运行

The mechanical action is stable, the quantity of the machine is heavy, and the automatic operation of the material vehicle

8.全智能化工业计算机控制系统并有一套手动操作系统

Fully intelligent chemical industry computer control system and a manual operating system。

9.操作简洁编程工艺灵活输入机械动作稳定可靠

The operation is simple and the programming process is flexible and the mechanical action is stable and reliable.

10.手动/半自动/自动故障自动报警/显示

Manual / semi-automatic / automatic fault automatic alarm / display

配置选择/Configure select

炉门开启方式： Furnace door opening mode：

回转式

Rotary

平开式

Flat type

垂直升降式

Vertical lifting type

中间隔热门：Middle septum hot：

机械传动 Mechanical drive

气动 /Pneumatic

（油）真空淬火油流动方式：(Oil)Vacuum quenching oil flow mode：

浆叶搅拌

Pulp blade stirring

喷嘴喷射

Nozzle injection

二者叠加

Superposition of the two

炉胆/Flue：

石墨加热元件与石墨毡复合屏合成结构；

Synthesis structure of Graphite heating element and Graphite felt Composite screen

钼加热元件与金属隔热屏合成结构；

The composite structure of Mo heating element and metal thermal insulation screen;

（油）气冷结构：

(oil)Air-cooled structure：

内置换热器

Built-in heat exchanger

外置换热器

External heat exchanger

（气）气淬方式

Gas quenching mode

炉体内置换热器循环冷却/Circulating cooling of displacement heater in furnace body

炉体外置换热器循环冷却/Circulating cooling of external heat exchanger of furnace body

真空泵组和真空计；

Vacuum pump set and vacuum gauge：

进口

Imported

高品质国产

High quality domestic

真空度：

Vacuum degree：

高真空

High vacuum

中真空

Medium vacuum

PLC:

西门子

Siemens

欧姆龙

OMRON

三菱

Mitsubishi

温控仪表

Thermostat meter：

欧陆

EUROTHERM

导电

Electric conduction

热电偶 :

Thermocouple：

S型分度号

S-type dividing number

记录仪 :

Grapher :

有纸记录仪

Paper recorder

无纸记录仪

Paperless recorder

人机界面:

Human-computer interface

模拟屏

Analog screen

计算机触摸屏

Computer touch screen

电器元件

Electrical component：

高品质国产

High quality domestic

施耐德

Schneider

西门子

Siemens

产品规格/ Specifications：

注：特殊规格要求可根据客户要求定制

Note: Special specification requirements can be customized according to customer requirements

以下参数可根据工艺要求调整，不作为验收依据，具体以技术方案和协议为准

The following parameters may be adjusted according to the process requirements and shall not be used as the basis for acceptance, depending on the technical scheme and agreement

参数/型号 Parameter/ Model	PJ-Q557	PJ-Q669	PJ-Q7711	PJ-Q8812	PJ-Q9916
有效热区W×H×L Effective hot zone	500×500×700	600×600×900	700×700×1100	800×800×1200	900×900×1600
装载重量（KG） Load weight	300	500	800	1200	2000
最高温度（℃） Max.temprature	1350	1350	1350	1350	1350
炉温均匀性（℃） Furnace temperature uniformity	±5	±5	±5	±5	±5
真空度（Pa） Vacuum degree	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3	4.0 E -1/ 6.7 E -3
压升率（Pa） Pressure rise rate	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5
移送时间（S） Transfer time	≤10	≤10	≤15	≤25	≤30
（油）冷却气压（bar） Cooling pressure	2	2	2	2	2
（气）气淬压力（bar） Gas quenching pressure	6-25	6-25	6-25	6-25	6-25
冷却气体（99.995％） Cooling gas	N2/Ar	N2/Ar	N2/Ar	N2/Ar	N2/Ar
